Health Bar Widget

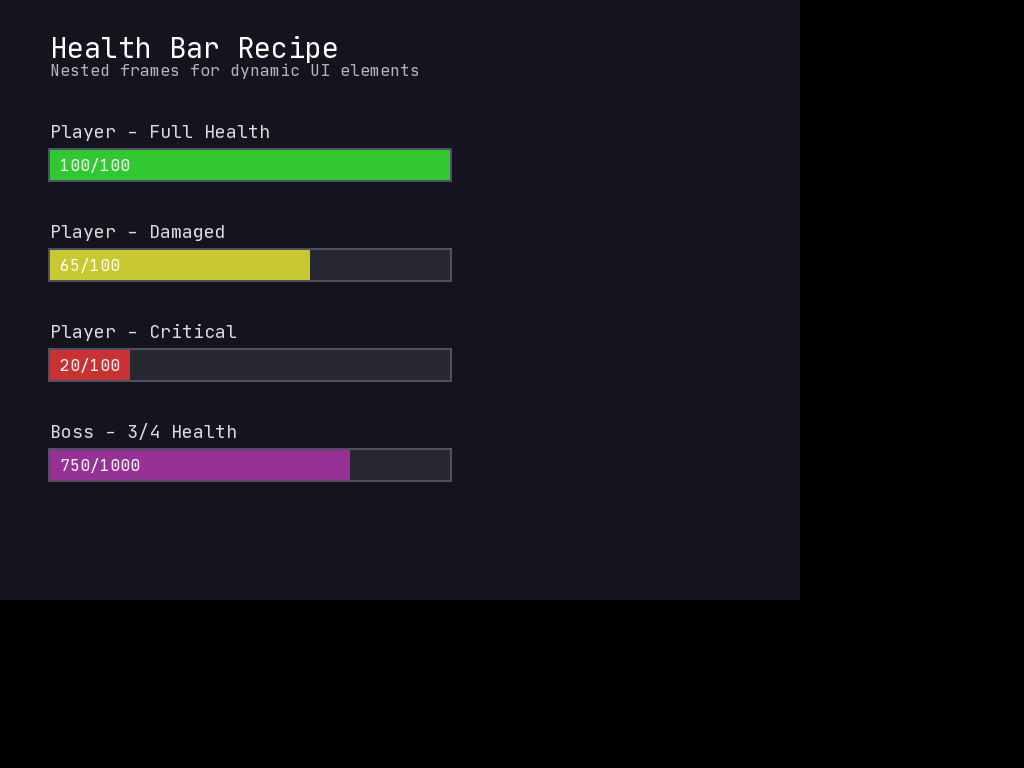

Health bars are a staple of game UI. This recipe shows how to build a flexible health bar using nested Frames - an outer background frame and an inner fill frame that scales with the current value.
The Pattern
A health bar consists of:
- Background Frame - The full-width container showing the maximum extent
- Fill Frame - A child frame whose width represents the current value
- Optional text - A Caption showing numeric values
The key technique is updating fill_frame.w based on the ratio of current to maximum health.
Basic Implementation
import mcrfpy
class HealthBar:
"""A simple health bar with background and fill."""
def __init__(self, x, y, w, h, current, maximum):
"""
Create a health bar.
Args:
x, y: Position on screen
w, h: Size of the bar
current: Current health value
maximum: Maximum health value
"""
self.x = x
self.y = y
self.w = w
self.h = h
self.current = current
self.maximum = maximum
# Background (empty bar)
self.background = mcrfpy.Frame(pos=(x, y), size=(w, h))
self.background.fill_color = mcrfpy.Color(40, 40, 40)
self.background.outline = 1
self.background.outline_color = mcrfpy.Color(80, 80, 80)
# Fill (current health)
self.fill = mcrfpy.Frame(pos=(x, y), size=(w, h))
self.fill.fill_color = mcrfpy.Color(220, 50, 50)
self.fill.outline = 0
# Update fill width
self._update_fill()
def _update_fill(self):
"""Update the fill frame width based on current/max ratio."""
ratio = max(0, min(1, self.current / self.maximum))
self.fill.w = self.w * ratio
def set_health(self, current, maximum=None):
"""
Update health values.
Args:
current: New current health
maximum: New maximum health (optional)
"""
self.current = current
if maximum is not None:
self.maximum = maximum
self._update_fill()
def add_to_scene(self, ui):
"""Add both frames to scene UI (background first, then fill)."""
ui.append(self.background)
ui.append(self.fill)
# Usage Example
scene = mcrfpy.Scene("health_demo")
# Create a health bar
hp_bar = HealthBar(50, 50, 200, 20, current=75, maximum=100)
hp_bar.add_to_scene(scene.children)
# Update health
hp_bar.set_health(50) # Now at 50%
scene.activate()
Enhanced Health Bar with Text and Colors
A more feature-rich version with numeric display and color transitions:
import mcrfpy
class EnhancedHealthBar:
"""Health bar with text display, color transitions, and animations."""
def __init__(self, x, y, w, h, current, maximum, show_text=True):
self.x = x
self.y = y
self.w = w
self.h = h
self.current = current
self.maximum = maximum
self.show_text = show_text
# Color thresholds (ratio -> color)
self.colors = {
0.6: mcrfpy.Color(50, 205, 50), # Green when > 60%
0.3: mcrfpy.Color(255, 165, 0), # Orange when > 30%
0.0: mcrfpy.Color(220, 20, 20), # Red when <= 30%
}
# Background frame with dark fill
self.background = mcrfpy.Frame(pos=(x, y), size=(w, h))
self.background.fill_color = mcrfpy.Color(30, 30, 30)
self.background.outline = 2
self.background.outline_color = mcrfpy.Color(100, 100, 100)
# Fill frame (nested inside background conceptually)
padding = 2
self.fill = mcrfpy.Frame(
pos=(x + padding, y + padding),
size=(w - padding * 2, h - padding * 2)
)
self.fill.outline = 0
# Text label
self.label = None
if show_text:
self.label = mcrfpy.Caption(
text="",
x=x + w / 2 - 20,
y=y + h / 2 - 8
)
self.label.fill_color = mcrfpy.Color(255, 255, 255)
self.label.outline = 1
self.label.outline_color = mcrfpy.Color(0, 0, 0)
self._update()
def _get_color_for_ratio(self, ratio):
"""Get the appropriate color based on health ratio."""
for threshold, color in sorted(self.colors.items(), reverse=True):
if ratio > threshold:
return color
# Return the lowest threshold color if ratio is 0 or below
return self.colors[0.0]
def _update(self):
"""Update fill width, color, and text."""
ratio = max(0, min(1, self.current / self.maximum))
# Update fill width (accounting for padding)
padding = 2
self.fill.w = (self.w - padding * 2) * ratio
# Update color based on ratio
self.fill.fill_color = self._get_color_for_ratio(ratio)
# Update text
if self.label:
self.label.text = f"{int(self.current)}/{int(self.maximum)}"
# Center the text
text_width = len(self.label.text) * 8 # Approximate
self.label.x = self.x + (self.w - text_width) / 2
def set_health(self, current, maximum=None):
"""Update health values."""
self.current = max(0, current)
if maximum is not None:
self.maximum = maximum
self._update()
def damage(self, amount):
"""Apply damage (convenience method)."""
self.set_health(self.current - amount)
def heal(self, amount):
"""Apply healing (convenience method)."""
self.set_health(min(self.maximum, self.current + amount))
def add_to_scene(self, ui):
"""Add all components to scene UI."""
ui.append(self.background)
ui.append(self.fill)
if self.label:
ui.append(self.label)
# Usage
scene = mcrfpy.Scene("demo")
# Create enhanced health bar
hp = EnhancedHealthBar(50, 50, 250, 25, current=100, maximum=100)
hp.add_to_scene(scene.children)
# Simulate damage
hp.damage(30) # Now 70/100, shows green
hp.damage(25) # Now 45/100, shows orange
hp.damage(20) # Now 25/100, shows red
scene.activate()
Animated Health Bar
Add smooth transitions when health changes:
import mcrfpy
class AnimatedHealthBar:
"""Health bar with smooth fill animation."""
def __init__(self, x, y, w, h, current, maximum):
self.x = x
self.y = y
self.w = w
self.h = h
self.current = current
self.display_current = current # What's visually shown
self.maximum = maximum
self.timer_name = f"hp_anim_{id(self)}"
# Background
self.background = mcrfpy.Frame(pos=(x, y), size=(w, h))
self.background.fill_color = mcrfpy.Color(40, 40, 40)
self.background.outline = 2
self.background.outline_color = mcrfpy.Color(60, 60, 60)
# Damage preview (shows recent damage in different color)
self.damage_fill = mcrfpy.Frame(pos=(x + 2, y + 2), size=(w - 4, h - 4))
self.damage_fill.fill_color = mcrfpy.Color(180, 50, 50)
self.damage_fill.outline = 0
# Main fill
self.fill = mcrfpy.Frame(pos=(x + 2, y + 2), size=(w - 4, h - 4))
self.fill.fill_color = mcrfpy.Color(50, 200, 50)
self.fill.outline = 0
self._update_display()
def _update_display(self):
"""Update the visual fill based on display_current."""
ratio = max(0, min(1, self.display_current / self.maximum))
self.fill.w = (self.w - 4) * ratio
# Color based on ratio
if ratio > 0.6:
self.fill.fill_color = mcrfpy.Color(50, 200, 50)
elif ratio > 0.3:
self.fill.fill_color = mcrfpy.Color(230, 180, 30)
else:
self.fill.fill_color = mcrfpy.Color(200, 50, 50)
def set_health(self, new_current, animate=True):
"""
Set health with optional animation.
Args:
new_current: New health value
animate: Whether to animate the transition
"""
old_current = self.current
self.current = max(0, min(self.maximum, new_current))
if not animate:
self.display_current = self.current
self._update_display()
return
# Show damage preview immediately
if self.current < old_current:
damage_ratio = self.current / self.maximum
self.damage_fill.w = (self.w - 4) * (old_current / self.maximum)
# Animate the fill
self._start_animation()
def _start_animation(self):
"""Start animating toward target health."""
self._animating = True
def animate_step(timer, runtime):
if not self._animating:
return
# Lerp toward target
diff = self.current - self.display_current
if abs(diff) < 0.5:
self.display_current = self.current
self._animating = False
# Also update damage preview
self.damage_fill.w = self.fill.w
else:
# Move 10% of the way each frame
self.display_current += diff * 0.1
# Continue animation
mcrfpy.Timer(self.timer_name, animate_step, 16)
self._update_display()
mcrfpy.Timer(self.timer_name, animate_step, 16)
def damage(self, amount):
"""Apply damage with animation."""
self.set_health(self.current - amount, animate=True)
def heal(self, amount):
"""Apply healing with animation."""
self.set_health(self.current + amount, animate=True)
def add_to_scene(self, ui):
"""Add all frames to scene."""
ui.append(self.background)
ui.append(self.damage_fill)
ui.append(self.fill)
# Usage
hp_bar = AnimatedHealthBar(50, 50, 300, 30, current=100, maximum=100)
hp_bar.add_to_scene(scene.children)
# Damage will animate smoothly
hp_bar.damage(40)
Multiple Resource Bars
For games with multiple stats (HP, MP, Stamina, etc.):
import mcrfpy
class ResourceBar:
"""Generic resource bar that can represent any stat."""
def __init__(self, x, y, w, h, current, maximum,
fill_color, bg_color=None, label=""):
self.x = x
self.y = y
self.w = w
self.h = h
self.current = current
self.maximum = maximum
self.label_text = label
if bg_color is None:
bg_color = mcrfpy.Color(30, 30, 30)
# Background
self.background = mcrfpy.Frame(pos=(x, y), size=(w, h))
self.background.fill_color = bg_color
self.background.outline = 1
self.background.outline_color = mcrfpy.Color(60, 60, 60)
# Fill
self.fill = mcrfpy.Frame(pos=(x + 1, y + 1), size=(w - 2, h - 2))
self.fill.fill_color = fill_color
self.fill.outline = 0
# Label (left side)
self.label = mcrfpy.Caption(text=label, x=x - 30, y=y + 2)
self.label.fill_color = mcrfpy.Color(200, 200, 200)
self._update()
def _update(self):
ratio = max(0, min(1, self.current / self.maximum))
self.fill.w = (self.w - 2) * ratio
def set_value(self, current, maximum=None):
self.current = max(0, current)
if maximum:
self.maximum = maximum
self._update()
def add_to_scene(self, ui):
if self.label_text:
ui.append(self.label)
ui.append(self.background)
ui.append(self.fill)
class PlayerStats:
"""Collection of resource bars for a player."""
def __init__(self, x, y):
bar_width = 200
bar_height = 18
spacing = 25
self.hp = ResourceBar(
x, y, bar_width, bar_height,
current=100, maximum=100,
fill_color=mcrfpy.Color(220, 50, 50),
label="HP"
)
self.mp = ResourceBar(
x, y + spacing, bar_width, bar_height,
current=50, maximum=50,
fill_color=mcrfpy.Color(50, 100, 220),
label="MP"
)
self.stamina = ResourceBar(
x, y + spacing * 2, bar_width, bar_height,
current=80, maximum=80,
fill_color=mcrfpy.Color(50, 180, 50),
label="SP"
)
def add_to_scene(self, ui):
self.hp.add_to_scene(ui)
self.mp.add_to_scene(ui)
self.stamina.add_to_scene(ui)
# Usage
scene = mcrfpy.Scene("stats_demo")
stats = PlayerStats(80, 20)
stats.add_to_scene(scene.children)
# Update individual stats
stats.hp.set_value(75)
stats.mp.set_value(30)
stats.stamina.set_value(60)
scene.activate()
McRogueFace-Specific Considerations
-
Frame Layering: Frames are rendered in the order they’re added to the UICollection. Add background first, then fill, then text to ensure proper layering.
-
No Built-in Clipping: The fill frame can extend beyond the background if you set
fill.wtoo large. Always clamp the ratio between 0 and 1. -
Absolute Positioning: Remember that nested conceptual elements still use absolute screen coordinates. Calculate child positions as
parent.x + offset. -
Timer Management: When using animations, use unique timer names (like
f"hp_anim_{id(self)}") to avoid conflicts between multiple health bars. -
Performance: For many entities with health bars (like enemies), consider only updating visible health bars or using a pooling system.
-
Alignment: Rather than hand-positioning bars, consider using UI Alignment with
align=Alignment.TOP_LEFTand amarginto anchor health bars relative to their parent.
Complete Example
import mcrfpy
import random
scene = mcrfpy.Scene("game")
# Player health bar at top
player_hp = EnhancedHealthBar(10, 10, 300, 30, 100, 100)
player_hp.add_to_scene(scene.children)
# Enemy health bar
enemy_hp = EnhancedHealthBar(400, 10, 200, 20, 50, 50)
enemy_hp.add_to_scene(scene.children)
# Simulate combat
def combat_tick(timer, runtime):
if random.random() < 0.3:
player_hp.damage(random.randint(5, 15))
if random.random() < 0.4:
enemy_hp.damage(random.randint(3, 8))
combat_timer = mcrfpy.Timer("combat", combat_tick, 1000)
# Keyboard controls for testing
def on_key(key, state):
if state != mcrfpy.InputState.PRESSED:
return
if key == mcrfpy.Key.H:
player_hp.heal(20)
elif key == mcrfpy.Key.D:
player_hp.damage(10)
scene.on_key = on_key
scene.activate()
