Floating Damage Numbers

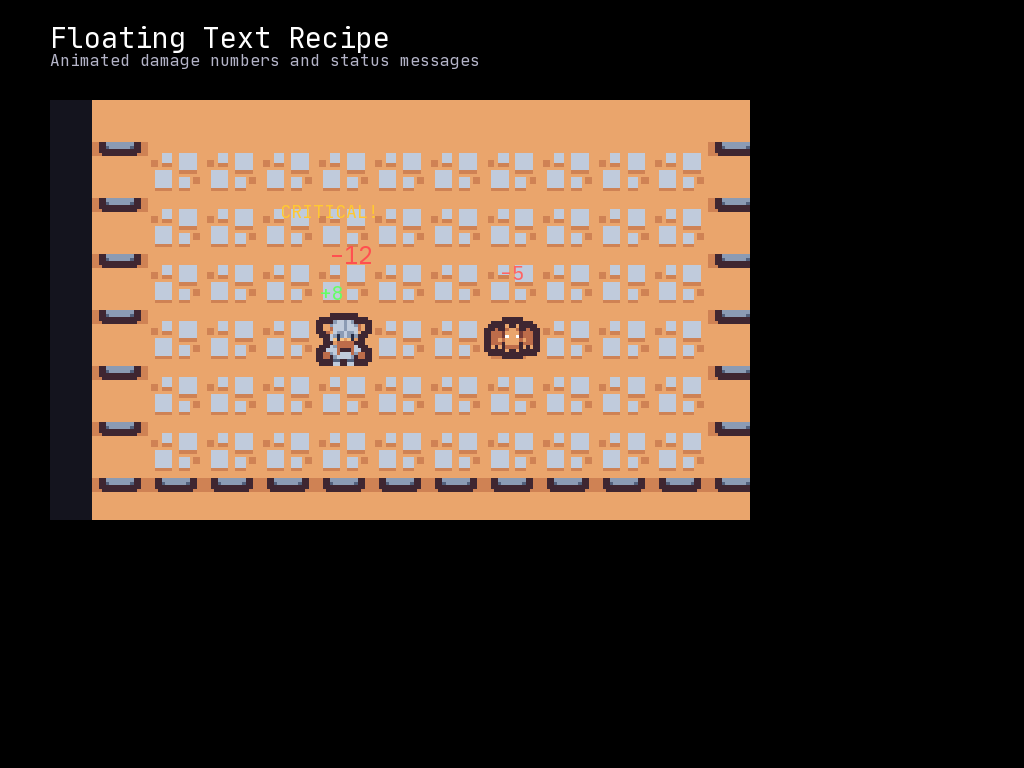

Floating Text Recipe

Text that floats upward and fades out, commonly used for damage numbers, healing, XP gains, and other combat feedback.

Quick Example

import mcrfpy

def show_damage(scene, x, y, amount, color=(255, 50, 50)):
    """Display floating damage number that rises and fades."""
    # Create the caption
    caption = mcrfpy.Caption(text=str(amount), x=x, y=y)
    caption.fill_color = mcrfpy.Color(color[0], color[1], color[2], 255)
    caption.font_size = 24
    scene.children.append(caption)

    # Animate upward movement
    caption.animate("y", float(y - 50), 0.8, mcrfpy.Easing.EASE_OUT)

    # Animate fade out
    caption.animate("opacity", 0.0, 0.8, mcrfpy.Easing.EASE_IN)

    # Remove caption after animation completes
    def cleanup(timer, runtime):
        try:
            scene.children.remove(caption)
        except ValueError:
            pass

    mcrfpy.Timer("cleanup_damage", cleanup, 850, once=True)

# Usage
game_scene = mcrfpy.Scene("game")
mcrfpy.current_scene = game_scene
show_damage(game_scene, 400, 300, 42)

Grid-Aware Floating Text

Convert grid coordinates to screen coordinates:

import mcrfpy

def grid_to_screen(grid, grid_x, grid_y):
    """Convert grid tile coordinates to screen pixel coordinates."""
    # Account for grid position, zoom, and center offset
    tile_size = 16 * grid.zoom
    center_offset_x = grid.center[0] * grid.zoom
    center_offset_y = grid.center[1] * grid.zoom
    grid_center_x = grid.x + (grid.w / 2)
    grid_center_y = grid.y + (grid.h / 2)

    screen_x = grid_center_x + (grid_x * tile_size) - center_offset_x + (tile_size / 2)
    screen_y = grid_center_y + (grid_y * tile_size) - center_offset_y

    return screen_x, screen_y

def show_grid_damage(scene, grid, grid_x, grid_y, amount, color=(255, 50, 50)):
    """Show floating damage at a grid position."""
    screen_x, screen_y = grid_to_screen(grid, grid_x, grid_y)
    show_damage(scene, screen_x, screen_y, amount, color)

# Usage
show_grid_damage(game_scene, grid, int(enemy.x), int(enemy.y), 25)

FloatingTextManager Class

A complete system for managing multiple floating text elements:

import mcrfpy
import random

class FloatingTextManager:
    """Manages floating text effects with automatic cleanup."""

    # Preset colors
    DAMAGE = (255, 50, 50)      # Red
    CRITICAL = (255, 200, 0)    # Gold
    HEAL = (50, 255, 50)        # Green
    MANA = (50, 150, 255)       # Blue
    XP = (200, 150, 255)        # Purple
    MISS = (150, 150, 150)      # Gray
    BLOCK = (100, 100, 100)     # Dark gray

    def __init__(self, scene, grid=None):
        """
        Args:
            scene: mcrfpy.Scene object to add floating text to
            grid: Optional grid for coordinate conversion
        """
        self.scene = scene
        self.grid = grid
        self.active_texts = []
        self.text_id = 0

    def _grid_to_screen(self, grid_x, grid_y):
        """Convert grid to screen coordinates."""
        if not self.grid:
            return grid_x, grid_y

        tile_size = 16 * self.grid.zoom
        center_offset_x = self.grid.center[0] * self.grid.zoom
        center_offset_y = self.grid.center[1] * self.grid.zoom
        grid_center_x = self.grid.x + (self.grid.w / 2)
        grid_center_y = self.grid.y + (self.grid.h / 2)

        screen_x = grid_center_x + (grid_x * tile_size) - center_offset_x + (tile_size / 2)
        screen_y = grid_center_y + (grid_y * tile_size) - center_offset_y

        return screen_x, screen_y

    def spawn(self, x, y, text, color, duration=0.8, font_size=24,
              rise=50, spread=0, is_grid_pos=False):
        """
        Spawn floating text at a position.

        Args:
            x, y: Position (grid or screen based on is_grid_pos)
            text: Text to display
            color: RGB tuple
            duration: Animation duration in seconds
            font_size: Text size
            rise: How many pixels to float upward
            spread: Random horizontal spread (0 = straight up)
            is_grid_pos: If True, convert from grid coordinates
        """
        if is_grid_pos:
            x, y = self._grid_to_screen(x, y)

        # Add random spread for visual variety
        if spread > 0:
            x += random.randint(-spread, spread)

        # Create caption
        caption = mcrfpy.Caption(text=str(text), x=x, y=y)
        caption.fill_color = mcrfpy.Color(color[0], color[1], color[2], 255)
        caption.font_size = font_size
        self.scene.children.append(caption)

        # Store reference
        self.text_id += 1
        text_info = {"id": self.text_id, "caption": caption}
        self.active_texts.append(text_info)

        # Animate upward
        caption.animate("y", float(y - rise), duration, mcrfpy.Easing.EASE_OUT)

        # Animate fade
        caption.animate("opacity", 0.0, duration, mcrfpy.Easing.EASE_IN)

        # Schedule cleanup
        cleanup_id = self.text_id
        def cleanup(timer, runtime, tid=cleanup_id):
            self._remove_text(tid)

        mcrfpy.Timer(f"float_cleanup_{self.text_id}", cleanup,
                     int(duration * 1000) + 50, once=True)

    def _remove_text(self, text_id):
        """Remove a text element by ID."""
        for i, info in enumerate(self.active_texts):
            if info["id"] == text_id:
                caption = info["caption"]
                # Find in scene and remove
                try:
                    self.scene.children.remove(caption)
                except ValueError:
                    pass
                self.active_texts.pop(i)
                break

    # Convenience methods
    def damage(self, x, y, amount, is_grid=True):
        """Show damage number."""
        self.spawn(x, y, f"-{amount}", self.DAMAGE,
                   font_size=24, spread=10, is_grid_pos=is_grid)

    def critical(self, x, y, amount, is_grid=True):
        """Show critical hit (larger, gold)."""
        self.spawn(x, y, f"-{amount}!", self.CRITICAL,
                   font_size=32, rise=60, spread=5, is_grid_pos=is_grid)

    def heal(self, x, y, amount, is_grid=True):
        """Show healing number."""
        self.spawn(x, y, f"+{amount}", self.HEAL,
                   font_size=24, spread=10, is_grid_pos=is_grid)

    def xp(self, x, y, amount, is_grid=True):
        """Show XP gain."""
        self.spawn(x, y, f"+{amount} XP", self.XP,
                   font_size=20, duration=1.2, is_grid_pos=is_grid)

    def miss(self, x, y, is_grid=True):
        """Show miss indicator."""
        self.spawn(x, y, "MISS", self.MISS,
                   font_size=18, spread=15, is_grid_pos=is_grid)

    def block(self, x, y, is_grid=True):
        """Show block indicator."""
        self.spawn(x, y, "BLOCK", self.BLOCK,
                   font_size=20, is_grid_pos=is_grid)

    def custom(self, x, y, text, color, is_grid=True, **kwargs):
        """Show custom floating text."""
        self.spawn(x, y, text, color, is_grid_pos=is_grid, **kwargs)


# Setup
game_scene = mcrfpy.Scene("game")
text_mgr = FloatingTextManager(game_scene, grid)
game_scene.activate()

# Usage examples
text_mgr.damage(enemy.x, enemy.y, 15)
text_mgr.critical(enemy.x, enemy.y, 42)
text_mgr.heal(player.x, player.y, 10)
text_mgr.xp(player.x, player.y, 50)
text_mgr.miss(enemy.x, enemy.y)
text_mgr.custom(5, 5, "Level Up!", (255, 255, 0), font_size=36, rise=80)

Stacked Numbers

When multiple hits happen at the same position, offset them:

class StackedFloatingText:
    """Prevents overlapping text by stacking vertically."""

    def __init__(self, scene, grid=None):
        self.manager = FloatingTextManager(scene, grid)
        self.position_stack = {}  # Track recent spawns per position

    def spawn_stacked(self, x, y, text, color, **kwargs):
        """Spawn with automatic vertical stacking."""
        key = (int(x), int(y))

        # Calculate offset based on recent spawns at this position
        offset = self.position_stack.get(key, 0)
        actual_y = y - (offset * 20)  # 20 pixels between stacked texts

        self.manager.spawn(x, actual_y, text, color, **kwargs)

        # Increment stack counter
        self.position_stack[key] = offset + 1

        # Reset stack after delay
        def reset_stack(timer, runtime, k=key):
            if k in self.position_stack:
                self.position_stack[k] = max(0, self.position_stack[k] - 1)

        mcrfpy.Timer(f"stack_reset_{x}_{y}_{offset}", reset_stack, 300, once=True)

# Usage
game_scene = mcrfpy.Scene("game")
stacked = StackedFloatingText(game_scene, grid)
game_scene.activate()

# Rapid hits will stack vertically instead of overlapping
stacked.spawn_stacked(5, 5, "-10", (255, 0, 0), is_grid_pos=True)
stacked.spawn_stacked(5, 5, "-8", (255, 0, 0), is_grid_pos=True)
stacked.spawn_stacked(5, 5, "-12", (255, 0, 0), is_grid_pos=True)

Key Concepts

  1. Animation properties: y for position, opacity for fade
  2. Easing combinations: “easeOut” for position (fast start, slow end), “easeIn” for opacity (slow start, fast end at disappearance)
  3. Timer cleanup: Remove captions after animation to prevent memory buildup
  4. Grid conversion: Account for zoom, center offset, and grid position

Tips

  • Add random horizontal spread to prevent stacking when multiple numbers spawn
  • Use larger font sizes for critical hits or important events
  • Different colors help players distinguish damage types at a glance
  • Keep durations short (0.5-1.0s) for responsive feel
  • Consider text outline or shadow for visibility on varied backgrounds
